Description

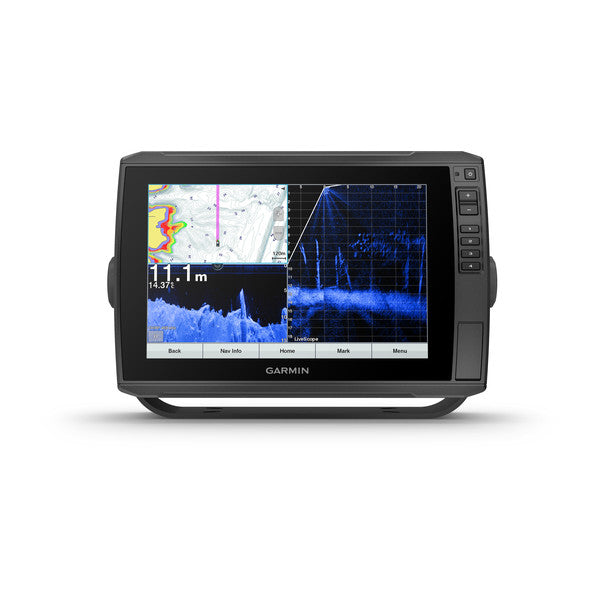

Garmin ECHOMAP™ Ultra 102sv Without Transducer
Model: 010-02111-00
10″ keyed-assist touchscreen combo with all the built-in tools you need to find and catch fish
Built-in support for our premium sonars, including the Panoptix LiveScope™ scanning sonar system and Panoptix LiveScope LVS12 sonar
Share sonar, waypoints and routes with other ECHOMAP Ultra 10″ and 12″ units as well as ECHOMAP Plus 7″ and 9″ units
Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app
NMEA 2000® connectivity and support for heading sensors, autopilots, digital switching, weather, FUSION-Link™ audio system and more
The ECHOMAP Ultra 102sv combo, with its bright, sunlight-readable 10″ keyed-assist touchscreen display, has all the tools you need for successful fishing. It includes built-in support for our premium Garmin sonar and optional premium BlueChart® g3 charts and BlueChart g3 Vision cartography with integrated data from Navionics®. All transducers are sold separately.
The ECHOMAP Ultra 102sv combo includes built-in support for optional traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars, Ultra High-Definition scanning sonar and Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix™ all-seeing sonar transducers. It also supports the Panoptix LiveScope system.
Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10″ and 12″ units as well as ECHOMAP Plus 7″ and 9″ units.
Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10″ and 12″ units as well as ECHOMAP Plus 7″ and 9″ units.
Upgrade the preloaded worldwide basemap to optional premium BlueChart g3 charts or BlueChart g3 Vision cartography with integrated data from Navionics, which add Auto Guidance technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
When you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.
Specifications
General
Physical dimensions
11.6″” x 7.7″” x 3.9″” (295 x 195 x 98 mm)
Display size
8.5″ x 5.4″; 10″” diagonal (21.7 cm x 13.6 cm; 25.4 cm diagonal)
Display resolution
1280 x 800 pixels
Display type
WXGA display
Weight
4.0 lbs (1.8 kg)
Water rating
IPX7
Polarized Support
Yes
Power consumption
26 W
Antenna
Internal only
Mounting options
Bail or flush
Receiver
10 Hz
Garmin Marine Network™ ports
2 (large connector)
Maps & Memory
Accepts data cards
2 microSD™ cards
Waypoints
5,000
Routes
100
Track log
50,000 points; 50 saved tracks
Outdoor Recreation Features
Tide tables
Yes
Chartplotter Features
Garmin Sonar compatible
Yes
Supports AIS (tracks target ships position)
Yes
Supports DSC (displays position data from DSC-capable VHF radio)
Yes
Supports FUSION-Link™ compatible radios
Yes
GCV™ Black Box sonar support
Yes
ActiveCaptain compatible
Yes
Sailing Features
Yes
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Yes
Dual-beam (77/200 kHz) sonar capable
Yes
Transmit power
500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology
Yes (Built-in)
ClearVü
Yes
SideVü
Yes
Maximum depth
2,300 ft @ 77 kHz, freshwater
1,100 ft @ 77 kHz, saltwater
(depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Yes
Water temperature log and graph
Yes
Sonar recording
Yes
Sonar history rewind
Yes
Connections
NMEA 2000® compatible
Yes
Transducer pin numbers
12
NMEA 0183 input ports
1
NMEA 0183 output ports
1
Wireless connectivity
Yes
What’s in the Box:
ECHOMAP Ultra 102sv with worldwide basemap
Power/data cable
Tilt mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
8-pin transducer to 12-pin sounder adapter cable
