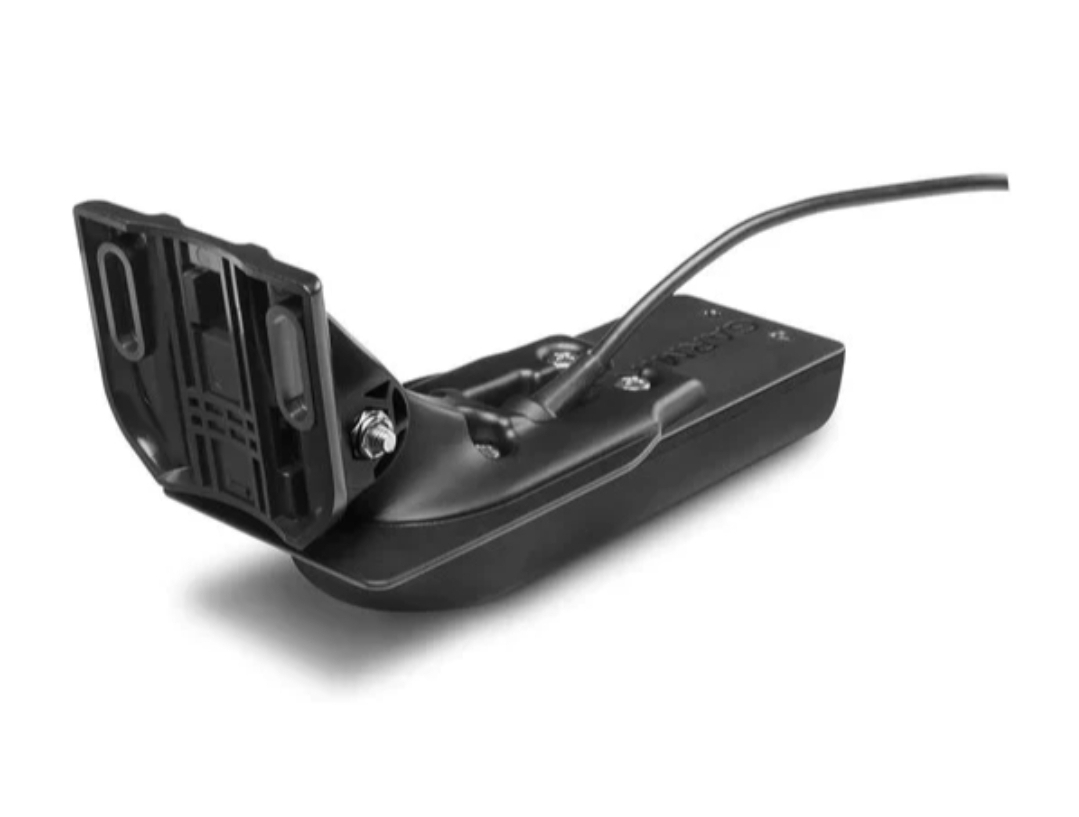

GARMIN GT52HW-TM TRANSOM MOUNT

Description

Garmin GT52HW-TM Plastic, Transom or Trolling Motor Mount Transducer , High Wide CHIRP (150-240 kHz, 250 W)/CHIRP DownVü and CHIRP SideVü (455/800 kHz, 500 W, 12-pin)

Model: 010-12405-00

UPC: 753759148614

GT52HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü and CHIRP SideVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below and to the side of the boat.

The 12-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü and CHIRP SideVü (455/800 kHz) elements have a power rating of 500 W each (1,500 W total).

GT52HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.

Specifications

Frequencies

Traditional: CHIRP 150-240 kHz

DownVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz

SideVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz

Transmit power

Traditional: 250 W

DownVü: 500 W

SideVü: 500 W

Maximum depth

Traditional: 800 ft

DownVü: 500 ft

SideVü: 500 ft

Beam Width (°) LF/HF (-3dB):

Traditional: 24-16

DownVü:

2.0×50@455

1.0×30@800

SideVü:

2.0×50@455

1.0×30@800

Cable length

20 feet

Connector

12 pin

Temperature

Yes

Dimensions

155 x 52 x 26 mm

What’s in the Box:

GT52HW-TM transducer

Transom mount

Trolling motor mount

Mounting hardware

Documentation
