Description
Product Information

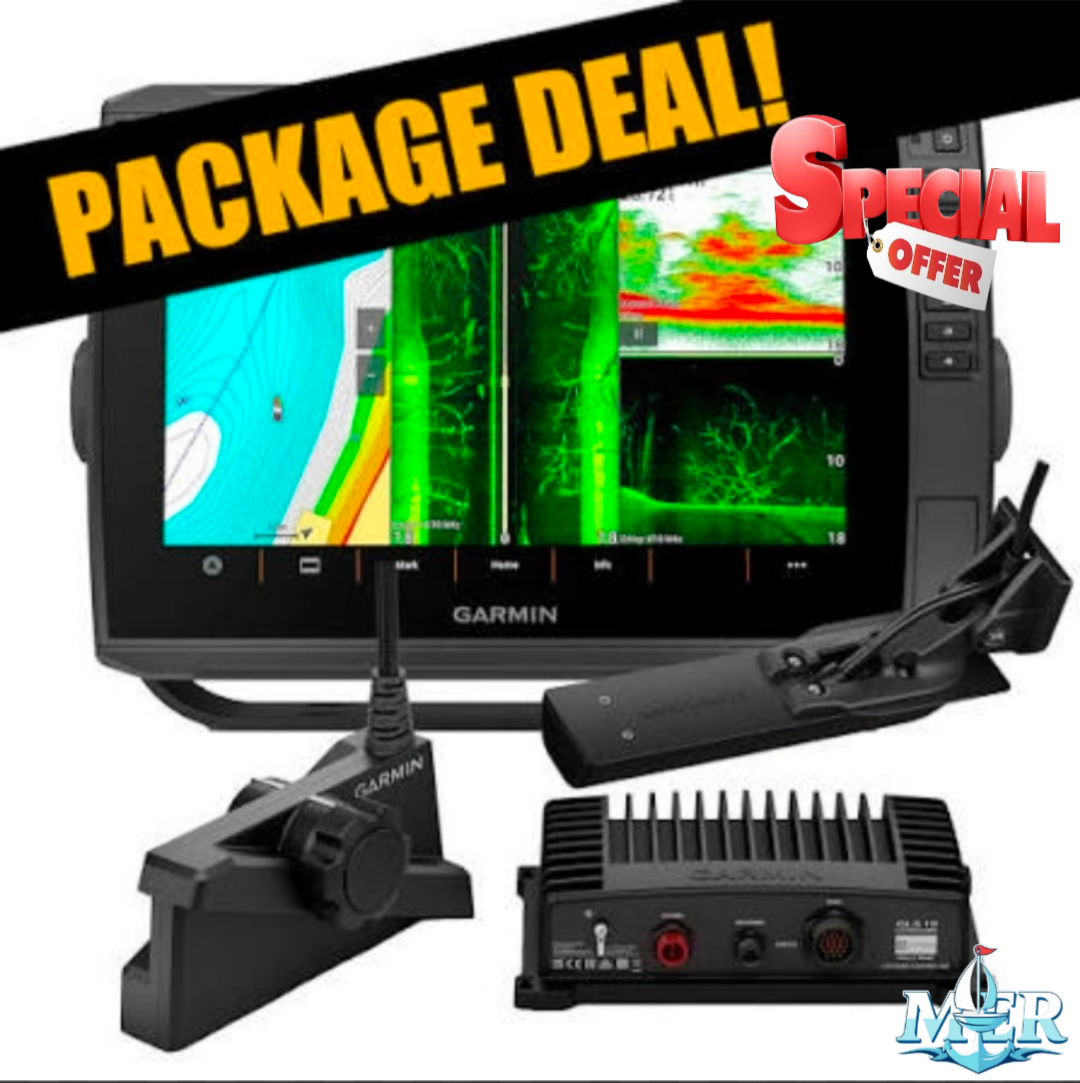

Stay ahead on every fishing trip with the Garmin ECHOMAP Ultra 2 122sv Chartplotter, GT56 transducer, and LiveScope Plus System. Together, these tools deliver unmatched precision and performance for exploring the underwater world. The 12” IPS touchscreen, real-time capabilities of the LiveScope Plus sonar system, and the high-resolution scanning power of the GT56 transducer make every fishing trip both productive and enjoyable.
• Large 12” IPS screen: Crisp and bright display for excellent visibility, from bright sunlight to dusk.
• LiveScope Plus in real-time: See fish, structures, and bait at depths of up to 61 meters with 35% better detail than before.
• GT56 transducer: Ultra High-Definition ClearVü and SideVü sonar provide near-photographic views beneath and beside your boat.
• Advanced chart support: Garmin Navionics+ and Vision+ charts with depth-contour shading and Auto Guidance+™ planning help you locate the best fishing spots.
• Customizable views: LiveScope Plus offers forward, downward, and perspective views to suit your fishing style.
• Easy and versatile: With an updated operating system, wireless connectivity, and quick-release mount, operation is seamless and efficient.
Garmin ECHOMAP Ultra 2 122sv Combo Unit with GT56 Transducer
Maximize your time on the water with the ECHOMAP Ultra 2 122sv combo unit and GT56 transducer. Packed with all the tools you need to find and catch fish, this 12” touchscreen unit with IPS display and Garmin Navionics+™ chart support is your ultimate fishing companion. It supports all LiveScope™ sonar, advanced ClearVü™ and SideVü™ sonar, as well as traditional Garmin CHIRP sonar (sold separately). Additional features include Quickdraw Contours software and compatibility with Garmin Navionics+ and Vision+™ maps with elevation contour shading and Auto Guidance+™ technology (for planning only, not safe navigation). Wirelessly connect to the Force® trolling motor to create and follow routes, navigate to waypoints, adjust speed, and monitor battery status.
Brand-new features:
• Multi-frequency GPS: Fast 10 Hz updates for improved accuracy and signal strength, even in areas with weak GPS reception.
• Wireless data sharing: Share data between ECHOMAP UHD2 and Ultra 2 devices without cables.
• Enhanced user interface: Modern design with updated menus and graphics for an intuitive user experience.
• Screen recording: Use the ActiveCaptain app to capture screenshots and share catches or LiveScope images directly from the chartplotter.
Additional features:
• IPS touchscreen with buttons: Offers easy and convenient operation.
• Force trolling motor integration: Create and follow routes, navigate to waypoints, adjust speed, and monitor battery status wirelessly.
• GT56 transducer: Provides incredibly detailed images with CHIRP sonar, UHD ClearVü™, and SideVü™.
• LiveScope compatibility: See fish and structures in real-time with LiveScope sonar (sold separately).
• Advanced charting: Compatible with Garmin Navionics+ and Vision+ maps with Auto Guidance+™ technology (for planning only, not navigation).
• Quickdraw Contours software: Create personalized fishing maps directly on the screen during your trip.
• ActiveCaptain app: Connect via Wi-Fi for smart notifications, software updates, and access to the Quickdraw Community.
• NMEA 2000 compatibility: For autopilot, Fusion audio systems, engine data, and more.
• Quick-release mount: Makes installation and removal fast and simple.
Specifications:
• Dimensions: 341 x 229 x 98 mm
• Display type and resolution: IPS, WXGA – 1280×800
• Mounting options: Includes mounting bracket and quick-release cradle
• GPS receiver: Dual frequency L1/L5, 10 Hz GPS/GLONASS/Galileo
• Preloaded maps: Garmin Navionics+
• Sonar power: 600 W CHIRP, 500 W (ClearVü and SideVü)
• Memory card slots: 2 microSD™ cards
• Connections: Wi-Fi, NMEA 2000®, 2x Marine Network, 1 x 12-pin transducer, 1 x 4-pin power
Garmin LiveScope Plus System LVS34 Transducer and GLS10 Unit
The Garmin LiveScope Plus System delivers exceptionally detailed live sonar imaging and is the latest addition to Garmin’s real-time sonar family. With improved target separation and clearer images, the system makes it easier than ever to identify fish, structures, and bait in real-time. Choose between three different views – forward, downward, or perspective – depending on your fishing method. AHRS stabilization ensures steady views, even in rough waters.
• 35% better target separation
• Minimal interference: Sharper images with fewer “ghost” artifacts.
• Compatible with existing GLS10 units for easy upgrades.
• Vivid color options: Enhance detail clarity.
• Compatible with Force trolling motor and other trolling motors.
• Perspective mount included: Easily switch between viewing modes.
Specifications:
• Frequency range: 530–1100 kHz
• Power output: 500 W
• Voltage: 10–32 V, typical 21 W, max 58 W
• GLS10 unit dimensions: 162 x 75 x 43 mm
• Marine network ports: 1
• Cable length: 3.6 m
Package includes:
•
ECHOMAP Ultra 2 122sv chartplotter with worldwide basemap
•
GT56UHD-TM transducer
• Power/data cable
• Mounting bracket and quick-release cradle
• Protective cover
• Accessories and manuals
•
GLS10 unit
•
LVS34 transducer
• Trolling motor mounting kit
• Perspective mount
• Power cable
• Network cable
• Network adapter cable
• Manuals
Specification
Product number: 1111860185879
Screen size “: 12 “
Brand: Garmin
Warranty: 24 mo.
Screen size “: 12 “
Brand: Garmin
Warranty: 24 mo.
