Description
Product Information

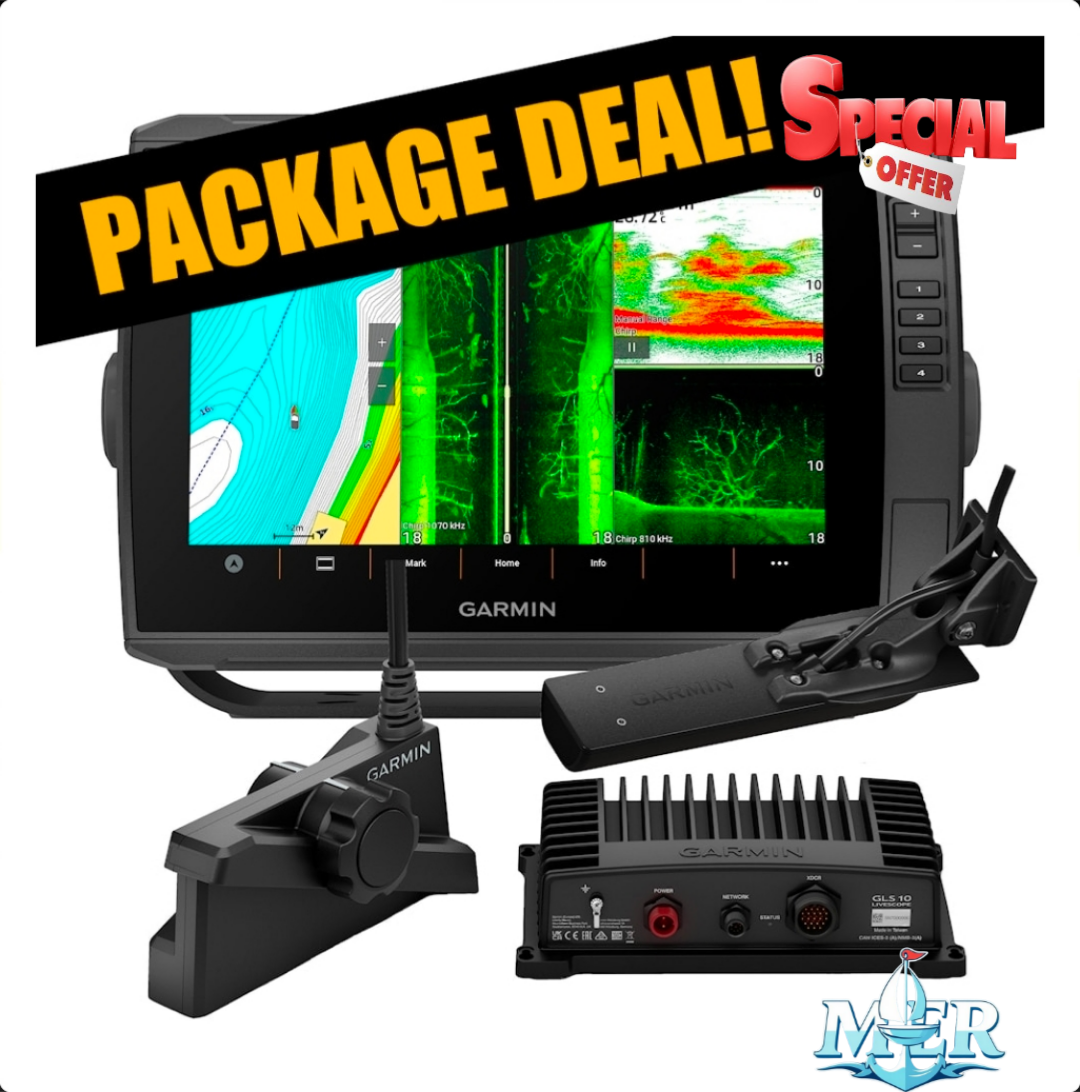

Take your fishing experience to the next level with the Garmin ECHOMAP Ultra 2 102sv and LiveScope Plus System. Featuring a large 10-inch IPS touchscreen, the crystal-clear views of the GT56 transducer, and real-time scanning from the LiveScope Plus system, you’ll gain an unparalleled perspective of the underwater world. Whether you’re chasing trophy fish or exploring new fishing spots, this package provides all the tools you need to stay ahead of the game.
• Bright and clear 10” display: IPS technology ensures crisp and vibrant images in any lighting conditions.
• LiveScope Plus: Explore underwater structures and fish with 35% improved target separation and reduced noise.
• GT56 transducer: Near-photographic ClearVü and SideVü imaging, plus traditional CHIRP sonar for accurate mapping.
• Smart navigation: Supports Garmin Navionics+ and Vision+ charts, with Auto Guidance+™ for easy route planning.
• Simple and versatile: Updated OS, wireless connectivity, and a quick-release mount for effortless use.
• Customizable sonar modes: Forward, downward, and perspective views offer versatile underwater observation.
Garmin ECHOMAP Ultra 2 102sv Combo Unit with GT56 Transducer
Maximize your time on the water with the ECHOMAP Ultra 2 102sv and GT56 transducer. This system includes everything you need to locate and catch fish. With a 10-inch touchscreen and button interface, plus an IPS display, it delivers outstanding image quality. Compatible with optional Garmin Navionics+™ charts and all LiveScope™ sonars, it features high-resolution ClearVü™ and SideVü™ imaging as well as traditional Garmin CHIRP sonar (sold separately). Quickdraw Contours software and support for Garmin Navionics+ and Vision+™ charts with depth shading and Auto Guidance+™ make planning and navigation a breeze. Wireless connectivity with the Force® trolling motor lets you manage routes, waypoints, and monitor battery status seamlessly.
Brand-new features:
• Multi-frequency GPS: 10 Hz updates for improved precision and reception, even in challenging environments.
• Wireless connectivity: Easily share sonar data, waypoints, and routes between ECHOMAP UHD2 and ECHOMAP Ultra 2 units.
• Enhanced user interface: Modern graphics and intuitive menus simplify navigation.
• Screen recording: Capture screenshots directly to your smartphone via the ActiveCaptain® app. Save and share LiveScope™ images too.
Additional features:
• IPS touchscreen with buttons: Easy to operate with excellent image quality.
• Force trolling motor integration: Wirelessly control routes, waypoints, and battery monitoring.
• Detailed sonar imaging: The GT56 transducer delivers crystal-clear ClearVü™ and SideVü™ images and traditional CHIRP sonar.
• LiveScope™ sonar compatibility: View fish and structures in real-time (sold separately).
• Charts: Supports Garmin Navionics+ and Vision+ charts, with Auto Guidance+™ for effortless planning.
• Vivid colors: Easily identify underwater structures and objects with clear color palettes.
• Quickdraw Contours software: Create your own fishing maps directly on the screen.
• ActiveCaptain app: Wireless updates, map purchases, and smart notifications.
• NMEA 2000 networking: Supports autopilot, Fusion® audio systems, engine data, and more.
• Quick-release mount: Easy installation and removal.
Technical specifications:
• Dimensions: 295 x 195 x 98 mm
• Display type and resolution (px): IPS, WXGA – 1280×800
• Mounting options: Bracket mount and quick-release mount (included)
• GPS receiver: Dual-frequency L1/L5, 10 Hz GPS/GLONASS/Galileo
• Preloaded charts: Garmin Navionics+
• Supported sonar frequencies: Internal CHIRP (single channel 70/83/200 kHz, L, M, H CHIRP), scanning (260/455/800/1000/1200 kHz ClearVü™ and SideVü™)
• Transmit power: 600 W CHIRP, 500 W scanning (ClearVü and SideVü)
• Auto Guidance+™ support with optional charts
• LiveScope™ sonar support
• Quickdraw™ Contours software
• Memory card slots: 2 microSD™ cards
• Connections: Wireless, NMEA 2000®, 2x Marine Network, 1 x 12-pin sonar, 1 x 4-pin power
Garmin LiveScope Plus System LVS34 Transducer and GLS10 Black Box
The Garmin LiveScope Plus System offers incredibly detailed real-time scanning and is the latest evolution of Garmin’s scanning sonar. This system provides even clearer and more precise sonar views with improved target separation. Distinguishing structures, bait, and fish around the boat in real time has never been easier. The transducer adapts to your fishing style: forward mode shows what’s ahead, down mode reveals what’s below, and perspective mode provides a bird’s-eye view. The image automatically adjusts on compatible Garmin chartplotters. AHRS stabilization keeps the view steady, even in rough water. The LiveScope Plus package includes mounts for electric trolling motors as well as a perspective mount.
• 35% better target definition compared to previous models
• Sharper and clearer sonar views with reduced noise (fewer “ghost images”)
• Compatible with existing LiveScope System GLS10 Black Box units for easy upgrades
• Bright color options for more detailed and vivid images
• Compatible with Garmin Force trolling motor and other electric trolling motors
• All three modes can be used with the included perspective mount
Technical specifications:
• Frequencies: 530-1100 kHz
• Transmit power: 500 W
• Voltage: 10-32V, typical 21W, max 58W
• GLS10 Black Box dimensions: 162 x 75 x 43 mm
• Garmin Marine Network ports: 1
• Cable length: 3.6 m (12 ft)
Package contents:
•
ECHOMAP Ultra 2 102sv with worldwide basemap
•
GT56UHD-TM transducer
• Power/data cable
• Mounting bracket and quick-release cradle
• Protective cover
• Accessories and manuals
•
GLS10 Black Box
•
LVS34 transducer
• Trolling motor rig mounts
• Perspective mount
• Power cable
• Network cable
• Network adapter cable
• Manuals
Specification
Product number: 1111947812707
Screen size “: 10 “
Brand: Garmin
Warranty: 24 mo.
Screen size “: 10 “
Brand: Garmin
Warranty: 24 mo.
