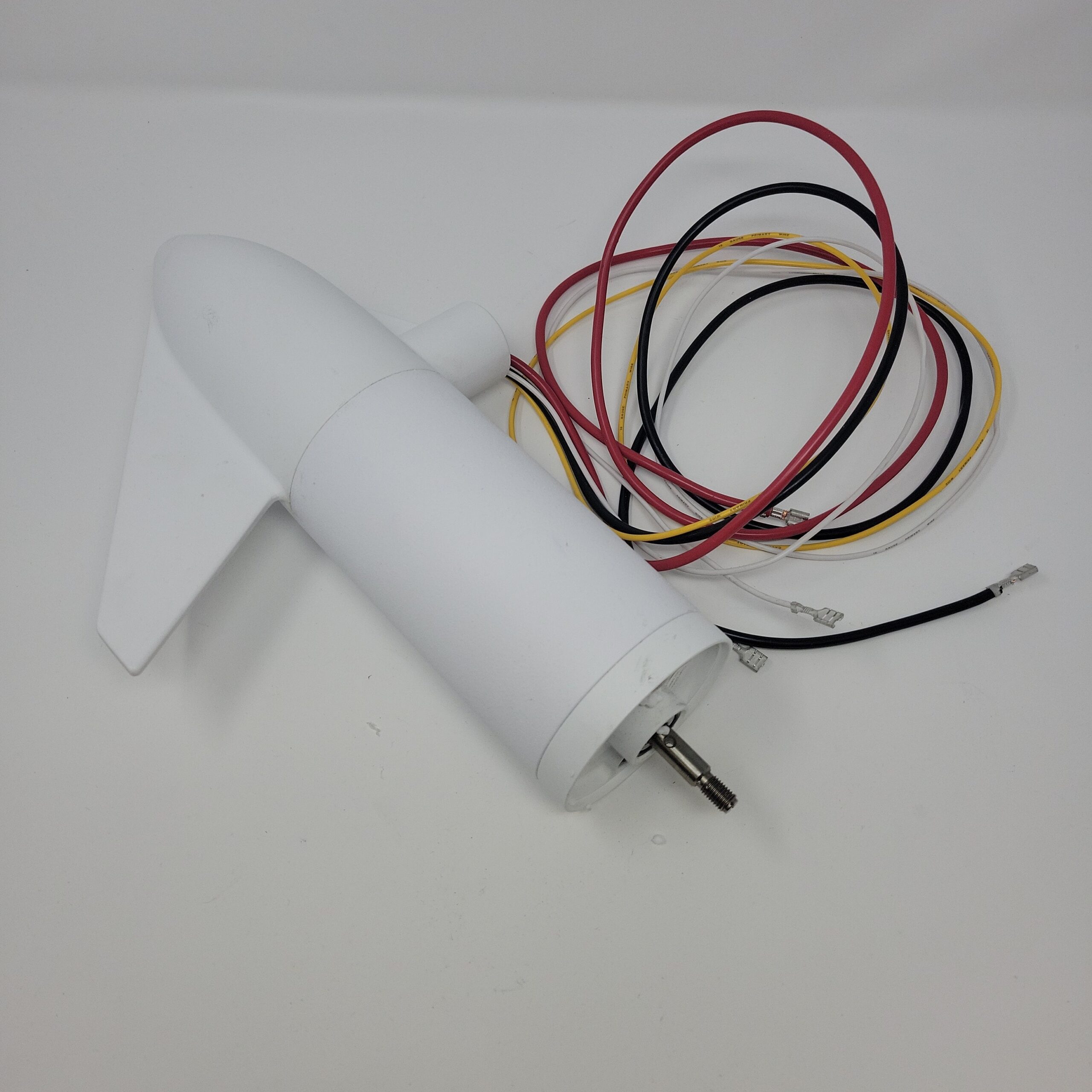

2069284 Minn Kota 45 LB SC Saltwater Lower Unit Assembly

Description

2069284 Minn Kota 45 LB SC Saltwater Lower Unit Assembly with speed coil

This part number replaces these old part number(s): 2068052, 2068054, 2068254, 2069046, 2069254

This lower unit assembly comes completely assembled ready to be installed.

The lower unit assembly works with trolling motors that uses a 5 speed switch to control the speeds.

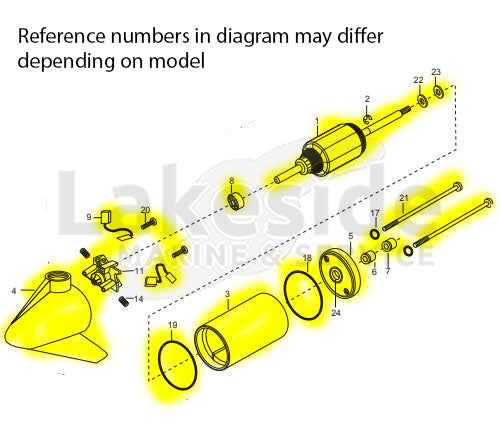

This lower unit assembly includes all the following parts (parts in parenthesis are superseded parts):

1 45# Armature Assembly 92-100-202 (405205, 2-100-178, 2-100-201, 2-100-202, 2-100-204, 2-100-278, 92-100-201, 92-100-204, Core 178, Core 201, Core 202, Core 204, Core 278)

1 E Clip 788-015 (3439, 405300, 406300)

1 Center Housing Assembly SW 92-200-379 (431-379, 2-200-079)

1 Brush End Housing Assembly SC SW 2-300-332M (2-300-035, 2-300-332, 2-300-332AA)

1 Plain End Housing Assembly SW 92-400-328 (403032, 403034, 2-400-066, 2-400-328, 92-400-066)

1 Prop Shaft Seal 880-003 (406461)

1 Prop Shaft Seal w/ Shield 880-006 (406471)

1 Sealed Ball Bearing 140-010 (406010)

2 Brush Assembly 188-052 (188-055)

1 Brush Plate w/ Holder 3.25″ LU 738-030 (2-600-222, 2-600-223, 2-600-285)

2 Brush Spring 975-032 (406-081, SK975-032)

2 Thru Bolt O Ring 701-007 (401462, SKI701-007)

1 O Ring 701-039 (406460)

1 O Ring 701-041 (403460, 701-141)

2 Screw #8-32 x 1.75″ 830-001 (406341, SK830-001)

2 Thru Bolt #8-32 x 8.96″ 830-078 (405352)

1 Steel Thrust Washer 990-067 (405170, 406170)

1 Nylon Washer 990-070 (405171)

1 Flange Bearing 144-049 (405000, 406600)

1 10 GA Black Motor Leadwire 640-002

1 10 GA Red Motor Leadwire 640-112M (640-112)
