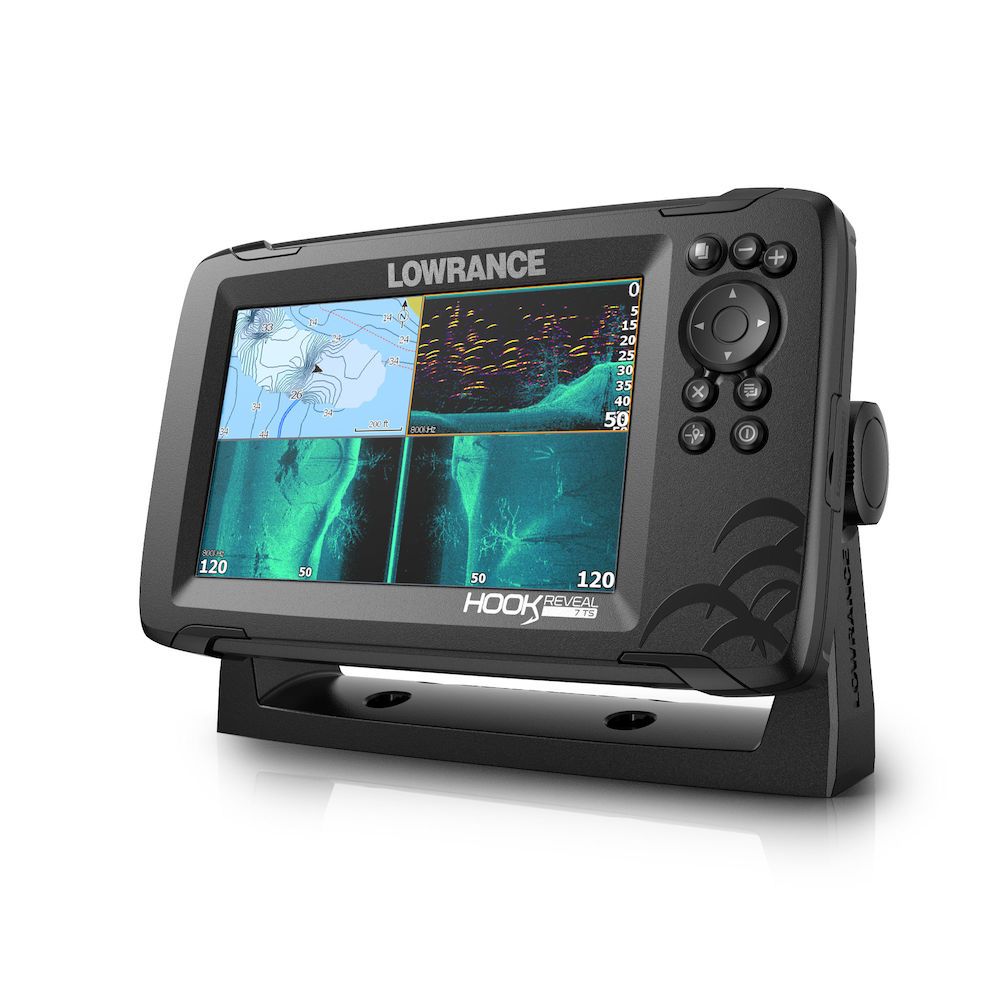

LOWRANCE HOOK REVEAL 7 TRIPLESHOT C-MAP CONTOUR+

Description

Lowrance HOOK Reveal 7 TripleShot with C-Map Contour+ microSD

Model: 000-15853-001

FishReveal

Genesis Live Real-Time Mapping

Autotuning sonar

Double the sonar coverage of other fishfinders

Tripleshot™ transducer with High CHIRP, SideScan and DownScan Imaging™

C-Map Contour+ microSD

SolarMAX™ Display

New fish-finding color palettes

Optimized keypad with one-touch access to key features

Mapping options include C-MAP, C-MAP Genesis, Navionics® and more

microSD card slot

Easy front-dash or gimbal-bracket mount

From the world’s best-selling series of fishfinders comes HOOK Reveal, a new fishfinder/chartplotter with one of our most popular features — FishReveal™. This powerful fishfinding tool combines the proven target identification of Lowrance CHIRP sonar with the high-resolution images of bottom detail and structure from DownScan Imaging™. That gives you the ultimate fishing view, allowing you to target fish and get the best view of how they are relating to structure without the need for a CHIRP-DownScan Imaging™ splitscreen display.

Designed to make the most of your time on the water, HOOK Reveal ensures you get the best sonar image every time with Autotuning Sonar, a unique feature that automatically adjusts sonar settings as fishing conditions change. What’s more, you’ll cover more water in less time with double the sonar coverage of other fishfinders, and have an easier time accessing key features with an optimized keypad and simple menu layout.

HOOK Reveal comes with a loaded combination of navigation tools to get you on the fish, including a preloaded US Inland fishing map with 1-foot contours on 4,000 lakes and Genesis Live real-time mapping. Find productive fishing areas faster with the built-in fishing map or map uncharted areas — down to ½-foot contours — with Genesis Live.

Specifications

Display

Backlight Color

Pure White LED

Resolution

800 x 480

Screen Brightness

>1000 NITS

Size and Type

7″” (178 mm)SolarMAX Display

Viewing Angles

80° top/bottom, 85° left/right

Electrical

Power Consumption, max.

1.25A @ 13VDC with backlight on full

Power Consumption, min.

1.25A @ 13VDC with backlight on full

Power Consumption, typical

1.25A @ 13VDC with backlight on full

Recommended Fuse Rating

5A

Supply Voltage

12v DC (10.8-17VDC)

Humidity

60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range

5°F to 131°F (-15°C to 55°C )

Shock and Vibration

100,000 cycles of 20 G

Storage Temperature Range

4°F to 140°F (-20°C to 60°C )

Waterproof rating

IPX7 with card door closed

GPS

Correction

DGPS, WAAS

Time to First Fix

30s

MFD

Cartography included

C-Map Contour+ microSD

Cartography supported

C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+)C-MAP GenesisGenesis LiveC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners(No Photo/Satellite Overlay)

External Storage

Micro SD Card(32 gb Max)

GPS

1 Hz GPSGLONASSWAASEGNOSMSAS

Sonar (inc. compatibility)

Integrated:CHIRPBroadbandDownScan

Waypoints, Routes, Tracks

3000 Waypoints100 Routes100 Trails

Compass Safe Distance – Metric, imperial

12″” (300mm)

Physical

Dimensions (W x H x D)

9.31″” (236.4 mm) x 6.46″” (164.2 mm) x 4.42″” (112.3 mm)

Mounting Type

Gimbal Bracket,Front Dash, Flush Mount
