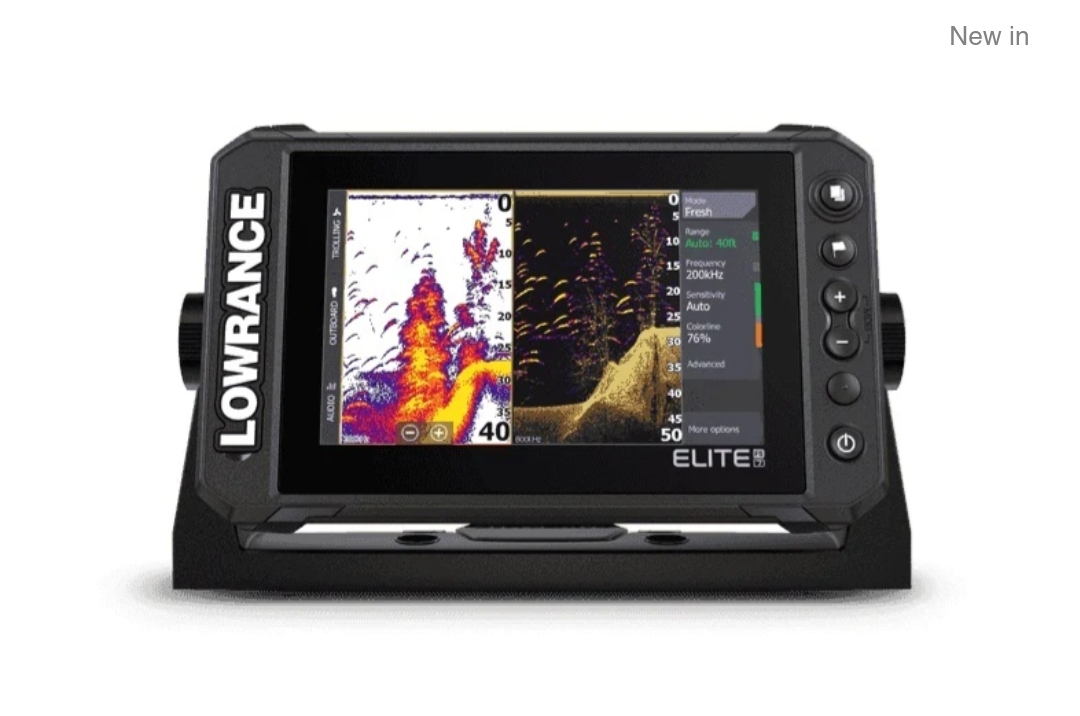

LOWRANCE ELITE FS 7 HDI TRANSDUCER C-MAP CONTOUR+

Description

Lowrance Elite FS 7 Display with C-Map Contour+ and HDI 83/200/455/800kHz Transom Transducer

Model: 000-15696-001

ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar

Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays

High Resolution Multi-touch screen

Preloaded with C-MAP Contour + charts (AMER,APAC)

NMEA 2000®: Support and control NMEA 2000® devices

Halo Radar: Drive Lowrance radar domes directly

Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts

Specifications

Environmental

Operating temperature range

-15°C to +55°C (5°F to 131°F)

Storage temperature

-20°C to +60°C (4°F to 140°F)

Waterproof rating

IPX6 and IPX7

Electrical

Supply voltage

12 V DC (10 – 17 V DC min – max)

Recommended fuse rating

3 A

Power consumption (maximum)

28 W (2 A at 13.8 V DC)

Display

Resolution

800 x 480 pixels

Viewing angles in degrees

50° top, 60° bottom, 70° left and right

Brightness

> 1200 nits

Touch screen

Multitouch

Physical

Weight (display only)

0.9 kg (1.9 lbs.)

Compass Safe Distance

0.5 m (1.6 ft.)

Interface/Connectivity

NMEA 2000®

1 port (Micro-C connector)

Data card reader

1x slot (microSD, SDXC)

Ethernet

1 port, (5-pin Ethernet connector, 100Base-T)

Sonar

1 port (9-pin connector)

WiFI Internal

802.11b/g/n : No wireless networking between units

Bluetooth®

4.0 with support for Bluetooth® Classic

GPS

10Hz high speed update WAAS, MSAS, EGNOS, GLONASS
