Humminbird Xplore

Description

Overview

The XPLORE Series is lightning-quick and laser-focused on anglers’ favorite features. Find your fishing spots faster with included LakeMaster and CoastMaster charts. Sync 10,000 fish spots with custom colors and icons to your phone through a new waypoint management system. Get the clearest picture of what’s below with compatibility for our best sonar, including MEGA Live 2 forward-facing sonar. Connects to Minn Kota products and control them on command – from enabling Advanced GPS navigation to deploying shallow water anchors – with One Boat Network compatibility. With our most advanced technologies and easy-to-use interface, there’s more to XPLORE.

FEATURES

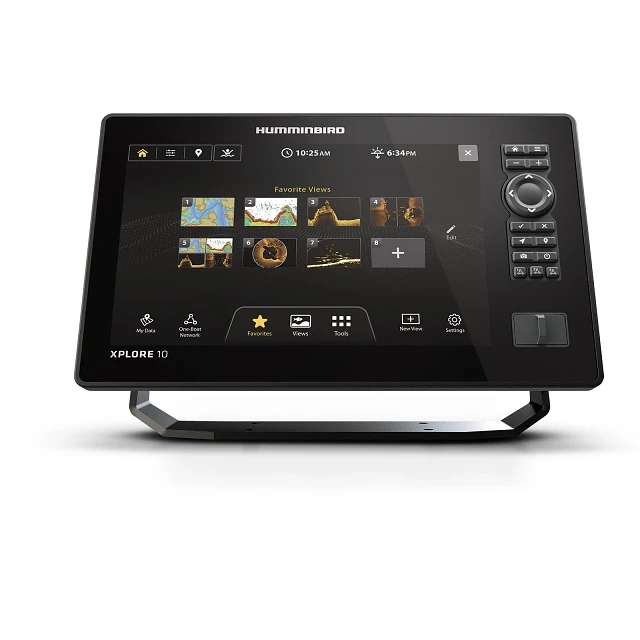

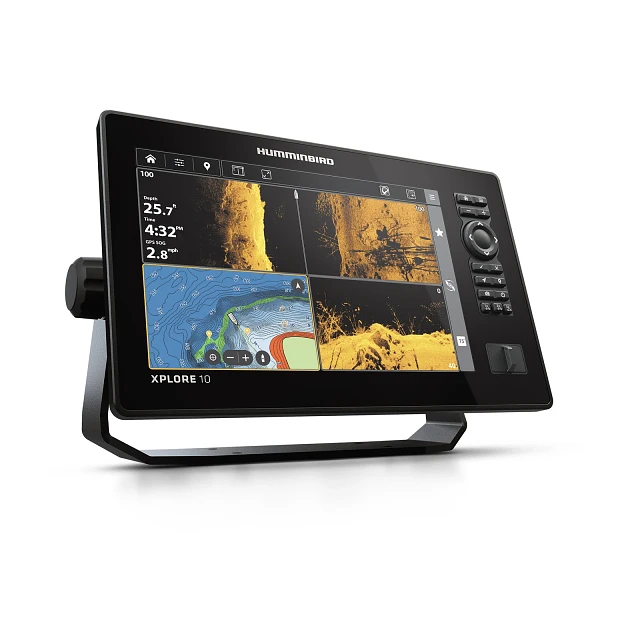

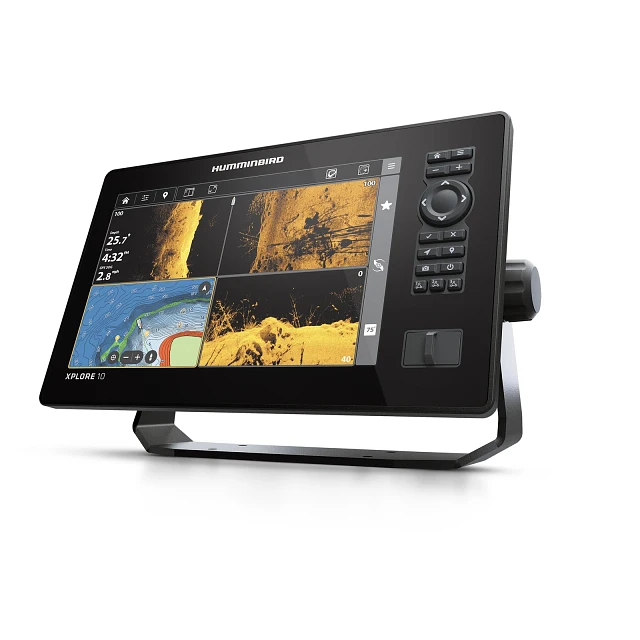

Full-HD Display with Cross Touch® interface

XPLORE delivers eye-popping detail with a 1280H x 720V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it’s up to you.

MEGA Side Imaging+

See the world below like never before with a crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You’ll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+

Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You’ll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Dual Spectrum CHIRP Sonar

Before you cast, know what’s down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

Internal GPS and Humminbird Basemap

Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible

Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird’s LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.

Includes LakeMaster® and CoastMaster® VX Maps

Navigate over 13,000 lakes, waterways, and coastal waters in the United States and Canada safely and with confidence. Tools like 1-foot contours, depth and shallow water highlights help you traverse waters with certainty.

Built-in SmartStrike™

Included with all LakeMaster® and CoastMaster® charts, SmartStrike™ highlights the best fishing spots based on real-time conditions—right from your map card

AutoChart Live

Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible

Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make the most of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking

High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth

Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App.

NMEA 2000 Networking Built-in

Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Compatible with MEGA Live 2 Sonar

Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom (Sold Separately).

In-Dash Installation Note

If indash mounted, an external GPS antenna is required to ensure accurate positioning and navigation.

Warranty

3-Year Limited Warranty with Registration

SPECS

Model

XPLORE 10 CMSI+ Fish Finder

Product Code

412010-1

Series

XPLORE

UPC

0082324058677

As shown MSRP

Display Size – Diagonal

10.1 in

Length

12.1 in | 30.73 cm

Height

7.25 in | 18.41 cm

Width

3.3 in | 8.38 cm

Weight

4 lb 12 oz | 2.15456 kg

Display Pixel Matrix

1280H x 800V

Transducer Included

XM 14 HW CMSI T

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, One-Boat Network, MEGA Live 2

Features

Touch Screen, Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi, MEGA Imaging

Memory Card Slot

Dual Micro SD

Sonar-Standard

Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+

Sonar-Coverage

20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB

Sonar-Optional

50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low

CHIRP – Frequencies Supported

Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)

Sonar-Frequencies Supported

50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA

Depth-Sonar

3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)

CHIRP – Imaging Frequencies Supported

455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)

Depth-Down Imaging

200 ft (MEGA), 400 ft (455 kHz)

Range-Side Imaging (Side-To-Side)

800 ft (455 kHz), 400 ft (MEGA)

Interface

Touch Screen, Keypad Control

Power Draw

2.2 Amps

Power Input

10.8-20 VDC

Power Output Peak-to-Peak

8000 Watts

Power Output RMS

1000 Watts

Screen Snap Shot

Included

Sonar Recording

Included

Mount-Standard

Gimbal

Mount-Standard Size

12.098 in W x 7.702 in H x 3.891 in D

Mount-Optional

In-Dash Mounting Kit

Mount-Optional Size

12.098 in W x 7.702 in H x 3.891 in D

Transducer Mount Location

Transom

GPS Chartplotting

Included

GPS Receiver

Internal

GPS Trackplotting

Not Supported

Waypoints, Routes, Tracks/Points

10,000, 50, 50/

360 Imaging Compatibility

Yes

MEGA Live Compatibility

Yes

Humminbird Basemap

Included

LakeMaster Compatibility

Yes

CoastMaster Compatibility

Yes

Navionics Gold/HotMaps Compatibility

Yes

Navionics Platinum+ Compatibility

Yes

Platinum Compatibility

Yes

Minn Kota Advanced GPS Navigation Compatibility

Yes

Minn Kota i-Pilot Link Compatibility

Yes

Minn Kota Talon Shallow Water Anchor Compatibility

Yes

Radar Compatibility

Yes

5-Port Ethernet Switch Compatibility

Yes

AIS Compatibility

Optional

Autopilot Compatibility

No

Heading Sensor GPS Compatibility

No

Heading Sensor GPS (NMEA 2000) Compatibility

Yes

NMEA2000

Included

Target Separation

2.5 in

Upgradable Software

Yes

View Preset Keys

Yes

X-Press Menu System

Yes

Custom Digital Readout

Yes

Custom View Selections

Yes

Display Colors Grayscale

24-Bit

Display Type

Color TFT

Speed

Included

Temperature

Built In

Temperature Alarm

Yes

Temperature Graph

Yes

HDMI Compatible

No

Warranty

Three-Year Warranty with Registration
