Description

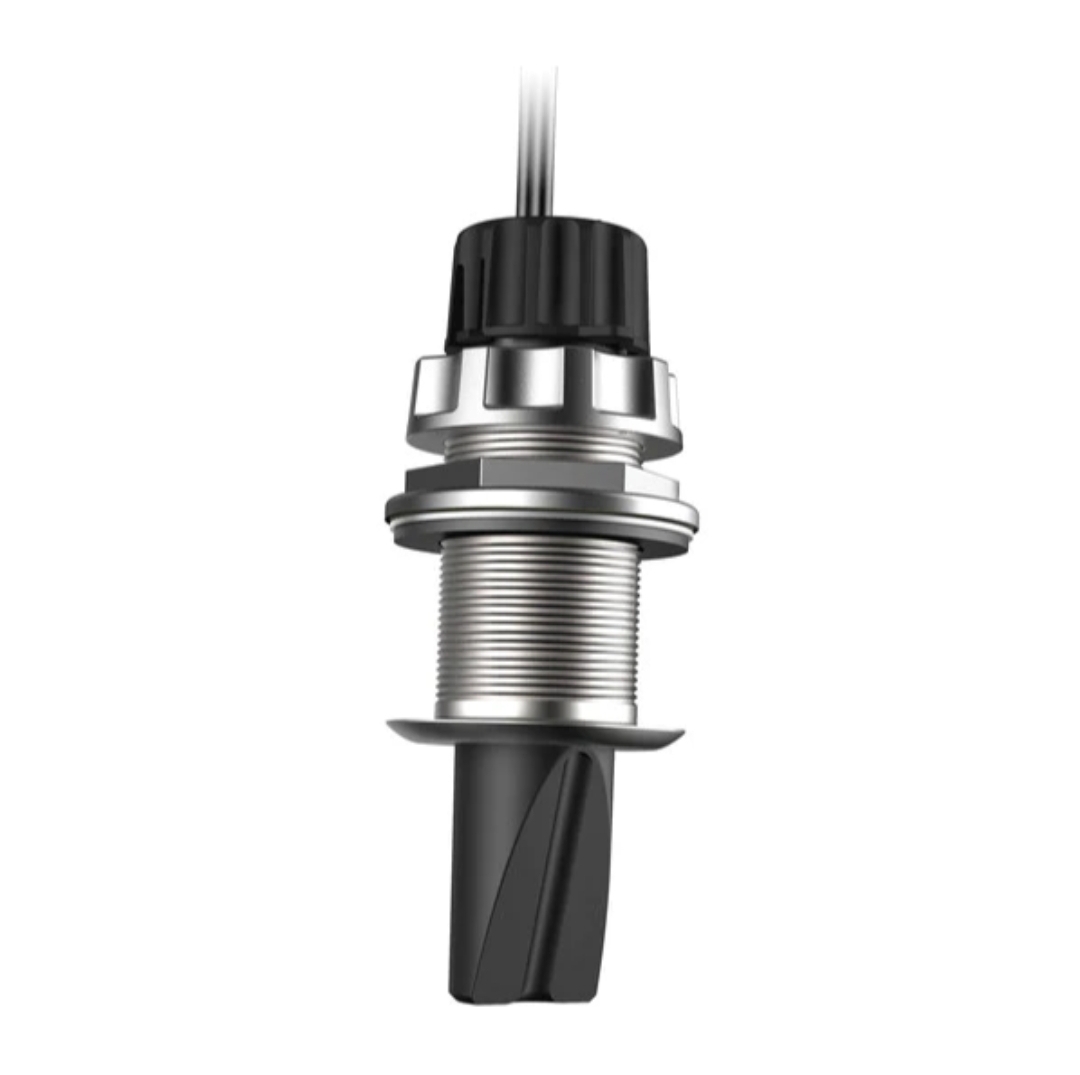

Garmin Panoptix™ PS51-TH Premium FrontVü Forward-looking Sonar
Model: 010-01753-00
UPC: 753759170912
Premium FrontVü forward-looking sonar helps you avoid running aground
Narrow beam, forward-looking sonar that focuses on the bottom in front of your boat
Displays the bottom ahead of your boat in real time
Displays bottom up to 300 feet ahead
Delivers nearly instant feedback to give you more time to react
The Panoptix multibeam thru-hull transducer with premium FrontVü forward-looking sonar helps you avoid running aground by displaying the bottom ahead of your boat in real time on your chartplotter.
Panoptix FrontVü sonar displays bottom up to 300 feet ahead of the boat (at 8 to 10 times the current depth) and delivers nearly instant feedback to give you more time to react. You can be more confident when navigating unfamiliar water because Panoptix FrontVü has a narrow beam, forward-looking sonar (20 degrees). This allows you to focus on the bottom in front of your boat and not be confused with what is off to each side. It also includes an AHRS sensor for motion stabilization that allows you to see what is in front of your boat even in rough water conditions. And all the FrontVü forward-looking sonar image data can be easily shared with other chartplotters across the Garmin Marine Network.
Panoptix PS51-TH features a standard 50.88 mm (2-inch) stainless steel thru-hull mount. Displays depth and temperature data, and is compatible with all Panoptix capable Garmin chartplotters.
1
The ability to effectively avoid running aground with FrontVü sonar decreases as speed rises above 8 knots.
Specifications
Mounting options
Thru-hull
Power consumption
Power consumption: <1.2A @ 12V Voltage range 10-35vDC Frequencies supported 417 kHz Maximum range 8-10x the current depth, up to 300 ft Beam shape LiveVü Forward 20° x 90° ?FrontVü 20° x 90° What’s in the Box: Panoptix PS51-TH forward thru-hull transducer Mounting hardware Fairing block Blanking plug Documenatation
