Description

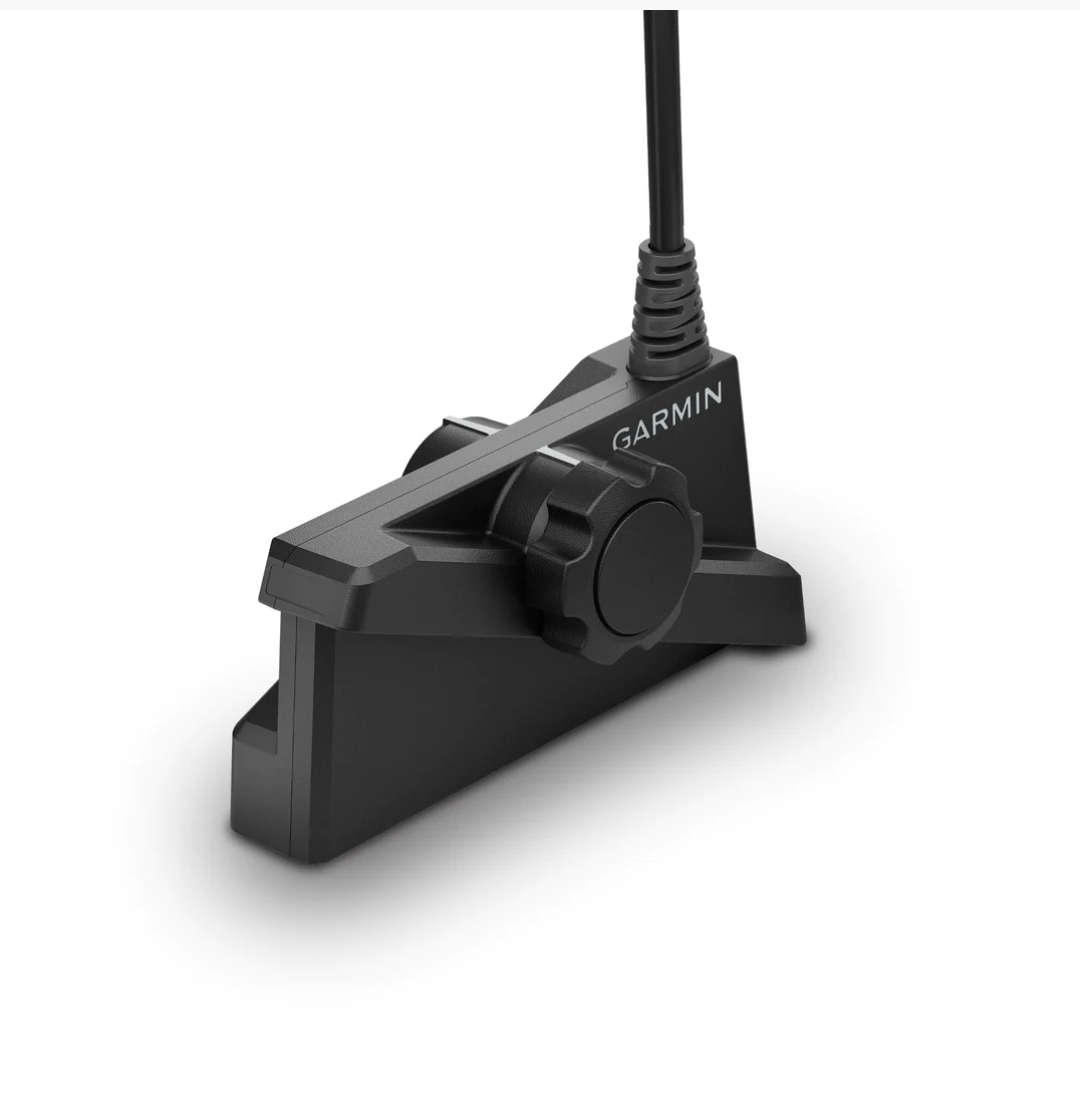

GARMIN LVS34 TRANSDUCER REPLACEMENT FOR LIVESCOPE PLUS TRANSOM/TROLLING MOTOR MOUNT
Garmin LVS34 Transducer for Panoptix Livescop Plus
Model: 010-02706-10
See images clearly with improved screen clarity, transducer sensitivity and target separation.
Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid color palettes.
Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
REAL-TIME IMAGES – Real-time sonar ensures that your live images are as accurate as possible
CLEAR VISION – See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
IMAGE STABILIZATION – A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOR PALETTES – Choose from seven vivid color options – including Aqua, Caribbean, Lava and more – to see fish and structure in maximum contrast and clarity.
Specifications
General
DIMENSION
6.4″ x 3.1″ x 1.9″ (16.2 x 3.1 x 4.8 cm)
WEIGHT
2.25 lbs (1.02 kg)
WATERPROOF
WATERPROOF
WATERPROOF
Operating: 0 C to 40 C
Sonar Features & Specifications
FREQUENCY
530 – 1,100 kHz
MAXDEPTH
Down and Forward: 200’ (61.0 m)
Connections
CONNECTIONS GARMIN MARINE NETWORK PORTS
1 (small connector)
Electrical Features
POWER INPUT
10-32 V
POWER USAGE
21 W typical, 58 W max
TRANSMIT POWER
500 W
FUSE
7.5 A
COMPASS-SAFE DISTANCE
4″” (0.1 m)
Additional
Minimum depth
3′ (0.91 m)
Sonar type
Live
Beamwidth
20° x 135°
Transducer cable length
20 ft
Transducer number of pins
21
What’s in the Box:
Panoptix LVS34 transducer
Perspective mount
Trolling motor barrel mount
Trolling motor barrel mount
Documentation
