Description

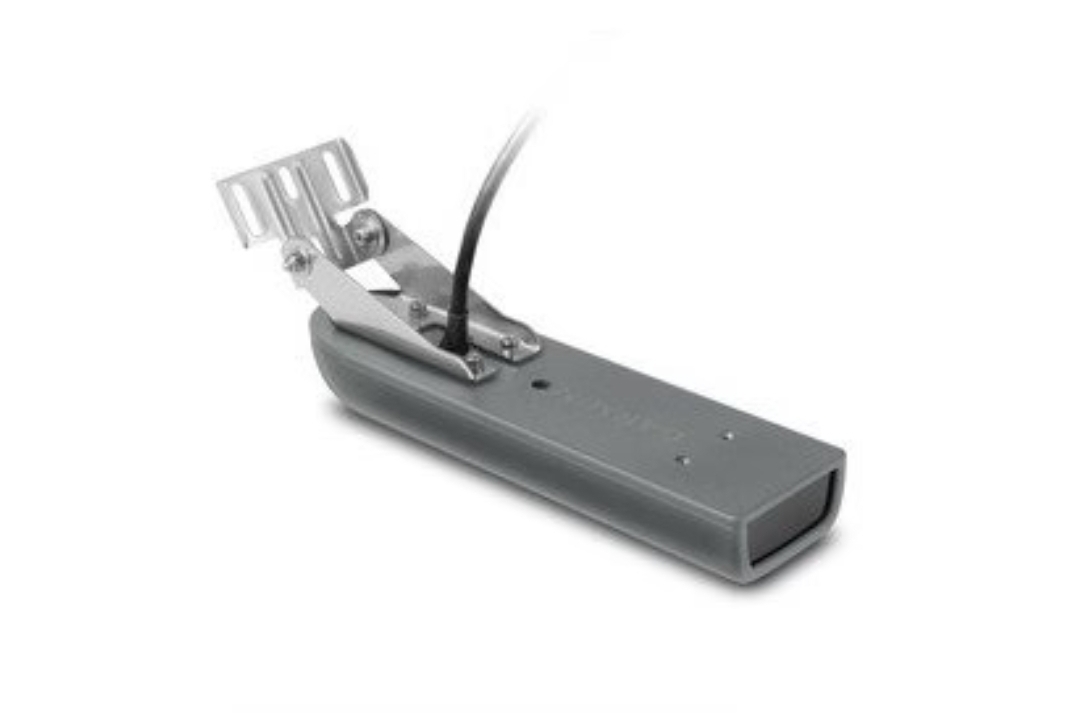

Garmin GT51M-TM Transducer
Transom Mount 12-Pin
Model: 010-01966-00
UPC: 753759152918
Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.
The CHIRP ClearVü/SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It also includes a built-in fast response temperature sensor.
GT51M-TM includes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications
General
Frequency
CHIRP Mid-band
(80-160 kHz)
ClearVü/SideVü CHIRP
260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Power
CHIRP Traditional
600 W
ClearVü/SideVü
500 W
Beamwidth
Traditional
24°-13°
ClearVü/SideVü
2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz
Maximum depth
Traditional
1,800 ft
ClearVü
1,000 ft
SideVü
750 ft.
Depth/Speed/Temperature
Depth and Temperature
Number of pins
12-pin
Cable length
30 ft.
Supported deadrise/Transom angles
0°-70° degree transom
