Description

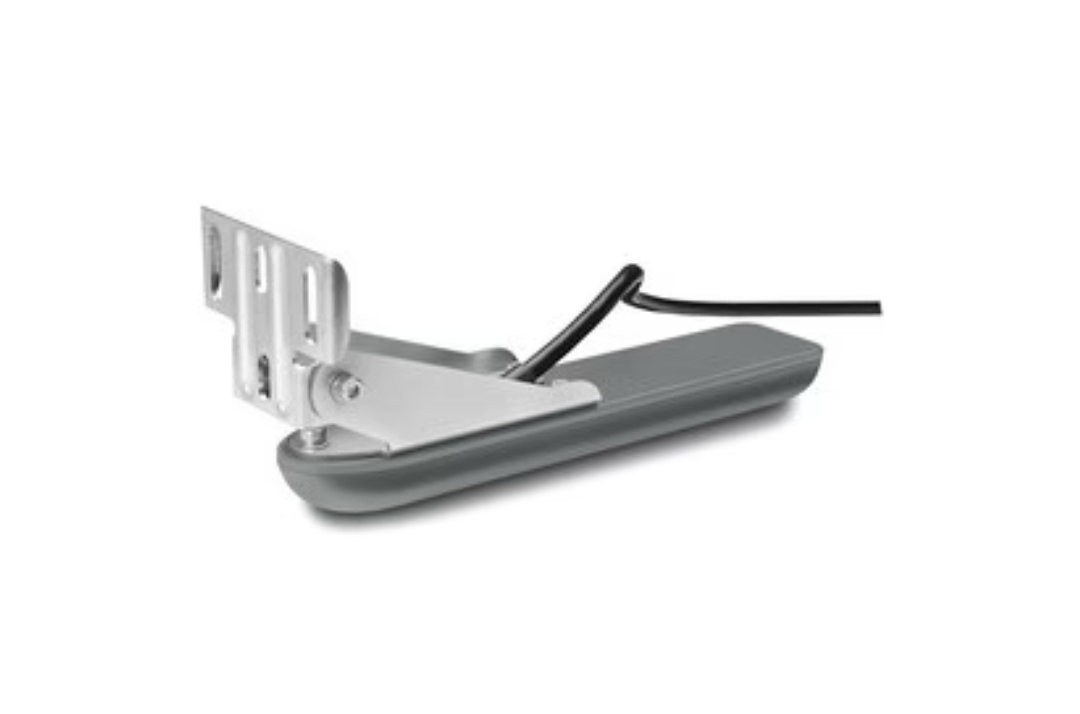

Garmin GT30-TM Transom
Sidevu/Downvu Transducer
Model: 010-01961-00
Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mount transducer consistently displays clear definition of objects, structure and fish below and to each side of the boat.
The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of 455/800 kHz; and a 0 to 70 transom angle. Pair it with your GCV™ 10 black box sonar.
Transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications
General
Frequency
ClearVü/SideVü CHIRP
455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power
ClearVü/SideVü
500 W
Beamwidth
ClearVü
1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
SideVü
1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
Maximum depth
ClearVü
750 ft
SideVü
500 ft.
Depth/Speed/Temperature
Depth and Temperature
Number of pins
12-pin
Cable length
20 ft.
Supported deadrise/Transom angles
0°-70° degree
