Description

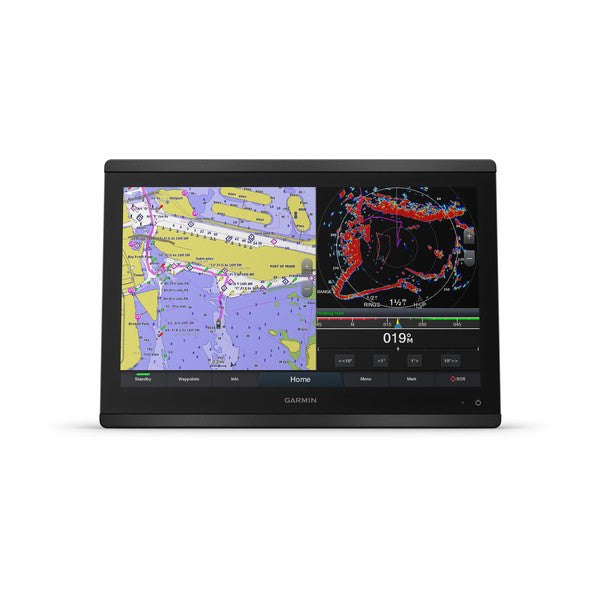

Garmin GPSMAP8616 16″” Plotter Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
Model: 010-02093-50
Features a 16″ full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
Adds a stunning appearance with ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush
Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia
ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor and more
For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices
See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway
Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there’s support for optional Garmin Navionics Vision+™ premium map content.
Compatible with the live sonar PS51 transducer with FrontVü™ forward-looking sonar, which helps you avoid running aground
SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more
Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge
Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more.
Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and cartography cards
The GPSMAP®8616 chartplotter features a 16″ full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™coastal charts and inland mapping that feature Auto Guidance+™technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there’s support for optional Garmin Navionics Vision+™premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000®networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™features provide data, displays and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® smartphone app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury®engines by using the SmartCraft®Connect gateway.
General
Physical dimensions
15.1″” x 10.3″” x 3″” (38.5 cm x 26.3 cm x 7.6 cm)
Weight
9.6 lbs (4.4 kg)
Water rating
IPX6 and IPX7
Display type
touchscreen IPS display (anti-glare finish)
Display size
13.6″” x 7.7″” (34.5 cm x 19.5 cm)
Display resolution
FHD; 1920 x 1080 pixels
Power consumption
3.5 A
Antenna
Internal or external over NMEA 2000
Mounting options
Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Receiver
10 Hz GPS/GLONASS/Galileo
Garmin Marine Network™ ports
2
Maps & Memory
Accepts data cards
2 microSD cards (on back)
Waypoints
5,000
Routes
100 (250 waypoints each)
Track log
50,000 points; 50 saved tracks
pre-loaded maps
Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
Outdoor Recreation Features
Tide tables
Yes
Chartplotter Features
Garmin Radar compatible
Yes
Garmin Sonar compatible
Yes
Garmin SmartMode compatible (customizable monitor presets)
Yes
Supports AIS (tracks target ships position)
Yes
Supports DSC (displays position data from DSC-capable VHF radio)
Yes
Supports FUSION-Link™ compatible radios
Yes
GSD™ Black Box sonar support
Yes
GCV™ Black Box sonar support
Yes
ActiveCaptain compatible
Yes
Garmin Helm compatible
Yes
GRID™ (Garmin Remote Input Device) compatible
Yes
Wireless remote compatible
Yes
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Yes (with external black box, sold separately)
Dual-beam (77/200 kHz) sonar capable
Yes (with external black box, sold separately)
Frequencies supported
NA
Transmit power
NA
CHIRP sonar technology
Yes_(when_connected_to_another_compatible_sonar_device)
ClearVü
yes (with GCV™ black box, sold separately)
SideVü
yes (with GCV™ black box, sold separately)
Maximum depth
NA
Connections
NMEA 2000® compatible
Yes
Transducer pin numbers
na
NMEA 0183 input ports
1 differential
NMEA 0183 output ports
1 differential
Video input ports
1 – BNC composite
1 – HDMI (HDCP compliant)
Video output ports
1 HDMI
Wireless connectivity
Yes
What’s in the Box:
GPSMAP 8616 Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
Power cable
NMEA 2000® drop cable
NMEA 2000 T-connector
Documentation
Flush mount kit
Sun cover
Trim piece snap covers
