GARMIN GLS10 SONAR MODULE REPLACEMENT FOR LIVESCOPE

Description

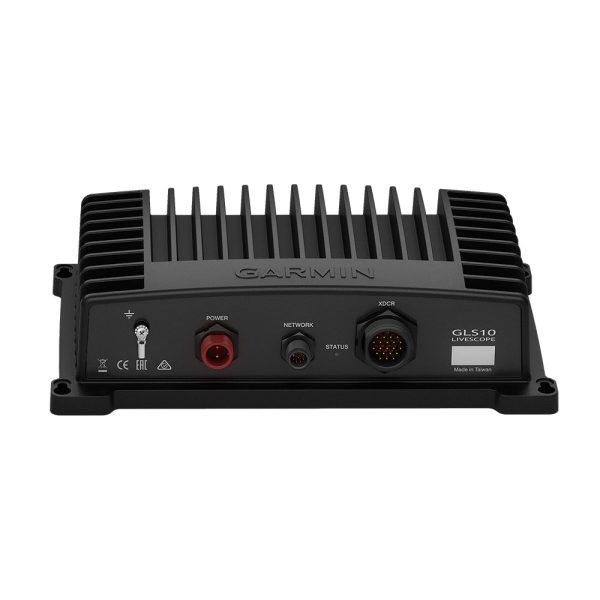

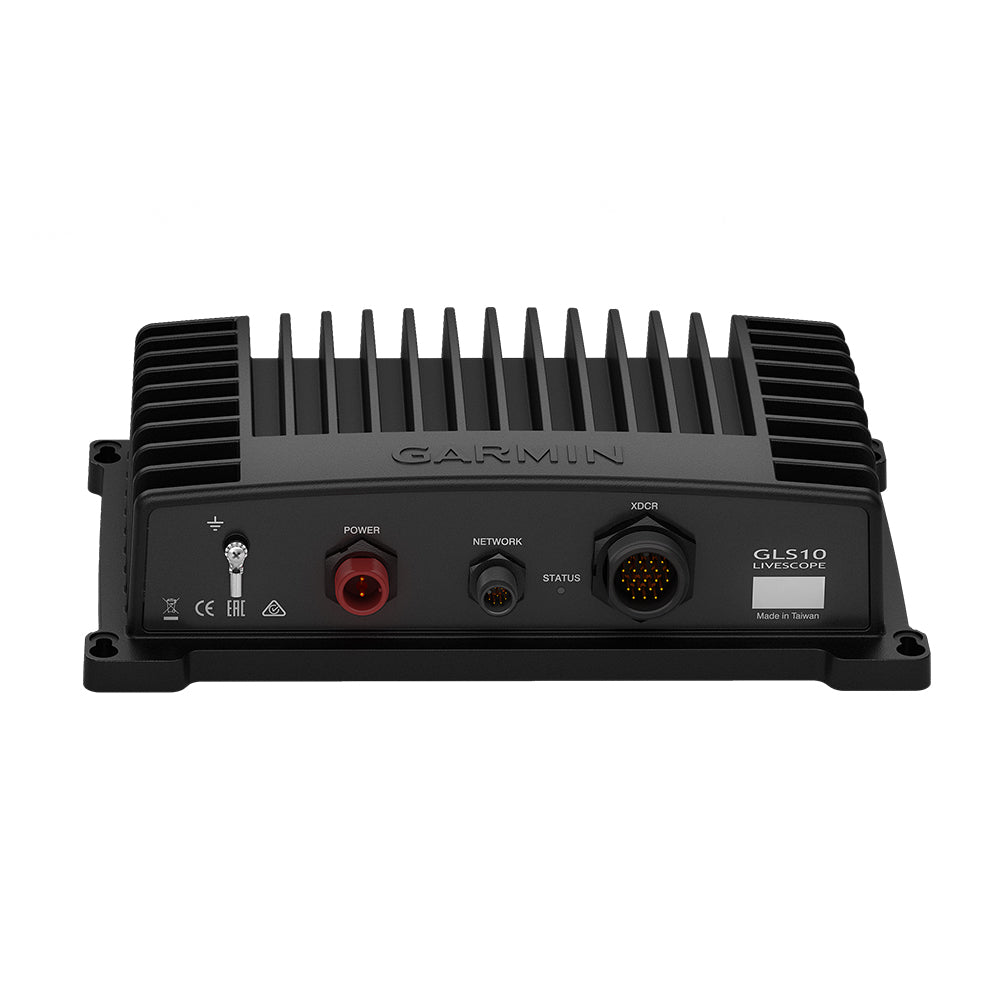

Garmin GLS10 Sonar Module

Model: 010-12954-00

The easy-to-install, networkable GLS 10 sonar black box allows you to see live, real-time scanning sonar. Add the LVS32 transducer model to see easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat. And you can share sonar images seamlessly across multiple networked chartplotters.

Requires LVS32, not included

Specifications

Physical dimensions

9.6″ x 5.9″ x 2.6″ (24.5 x 14.9 x 6.5 cm)

Weight

4.3 lbs (2.0 kg)

Water rating

IPX7

Garmin Marine Network™ ports

1 (small connector)

Temperature range

Operating: -15 C to 70 C

Sonar Features & Specifications

Frequencies supported

530 – 1,100 kHz

Transmit power

500 W

Maximum depth

Down and Forward: 200’ (61.0 m)

Electrical

Power input

10-32 V

Power usage

21 W typical, 58 W max

Fuse

7.5 A

What’s in the Box:

GLS 10 sonar module

Power cable

2 meter Garmin marine network cable, small connector

Network adapter cable

Mounting hardware

Documentation
