Description
The sun won’t steal your screen. The bright 7″ display is sunlight readable.
Get triple the views with three types of sonar by using the included transducer.
Only drill where there’s fish when you use LiveVü Forward sonar.
Keep an eye on your jig and what it attracts with LiveVü Down sonar.
It’s all in the details. And with LakeVü g3 maps, you’ll get them all on 18,000+ lakes.
Everything goes where you go. All accessories fit in the rugged, portable carrying case.
Use the 7″ ECHOMAP UHD 73cv touchscreen combo with keyed assist for three types of sonar, and go from ice to open water.
See what’s below the surface with the included Panoptix PS22-TR transducer. Use the swivel pole mount to change your angle.
LiveVü Forward sonar shows up to 100’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
LiveVü Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.
Garmin CHIRP traditional sonar provides crystal-clear images with remarkable target separation and jig detection.
The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
You can create custom pages that combine sonar, flasher and map on your display.
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
Specifications
General
PHYSICAL DIMENSIONS
12.3″” 14.5″” 10.0″” (31.1 36.7 25.4 cm)
DISPLAY SIZE
6.0″”x3.6″”; 7.0″” diagonal
DISPLAY RESOLUTION
800 x 480 pixels
DISPLAY TYPE
WVGA display
WEIGHT
16.7 lbs (7.6 kg)
WATER RATING
IPX7
POWER CONSUMPTION
6.2 W
ANTENNA
Internal or external over NMEA 2000
RECEIVER
5 Hz
GARMIN MARINE NETWORK™ PORTS
1 Panoptix™ port
TRANSMIT POWER
GT10HN-IF Transducer: 500 W (RMS) / 4,000 W (peak to peak)
Maps & Memory
PRELOADED MAPS
LakeVü g3 (inland maps)
ACCEPTS DATA CARDS
1 microSD™ card; 32 GB maximum card size
WAYPOINTS
5,000
TRACK LOG
50,000 points; 50 saved tracks
ROUTES
100
Outdoor Recreation
TIDE TABLES
Yes
Chartplotter Features
GARMIN SONAR COMPATIBLE
Yes
Sonar Features & Specifications
FREQUENCIES SUPPORTED
Panoptix PS22-TR: 417 kHz GT10HN-IF: CHIRP High Narrow (130-300 kHz)
CHIRP SONAR TECHNOLOGY
Yes (Built-in)
WATER TEMPERATURE LOG AND GRAPH
Yes
MAXIMUM DEPTH
Panoptix PS22-TR: 300 ft Down; 300 ft Forward GT10HN-IF: 800 ft. freshwater
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
Yes
SONAR RECORDING
yes
SONAR HISTORY REWIND
Yes
Connections
NMEA 2000® COMPATIBLE
Yes
TRANSDUCER PIN NUMBERS
Panoptix PS22-TR: Network GT10HN-IF: 8-pin
NMEA 0183 INPUT PORTS
1
NMEA 0183 OUTPUT PORTS
1
WIRELESS CONNECTIVITY
Yes
What’s in the Box:

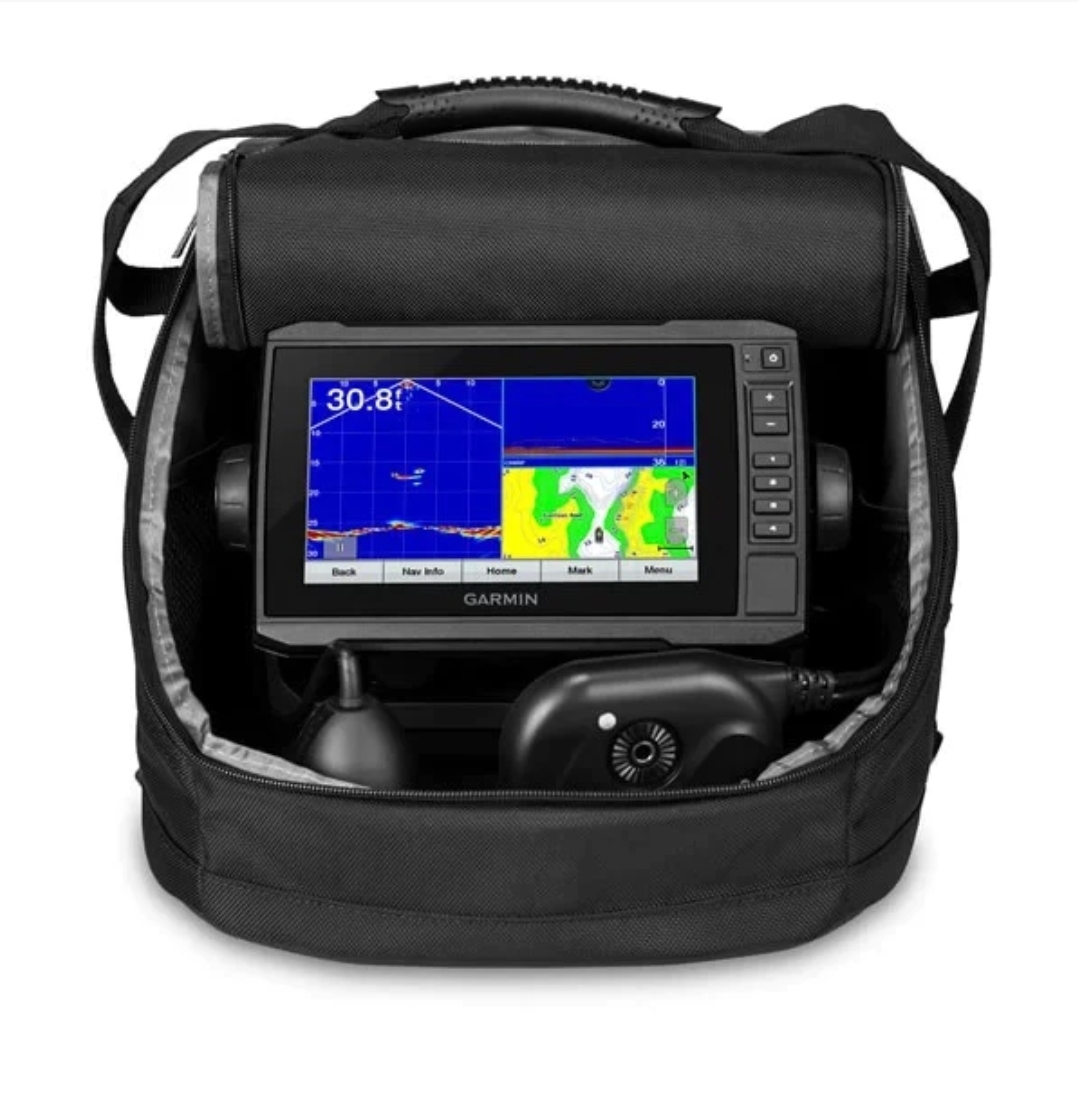

ECHOMAP™ UHD 73cv chartplotter
GT10HN-IF transducer
Power cable
Tilt/swivel mount
Documentation
Bag with handle
Foam float
Rechargeable battery
Battery charger
Panoptix™ PS22-TR transducer
Panoptix ice fishing mount
Transducer adapter cable
Cable grommet
