Description

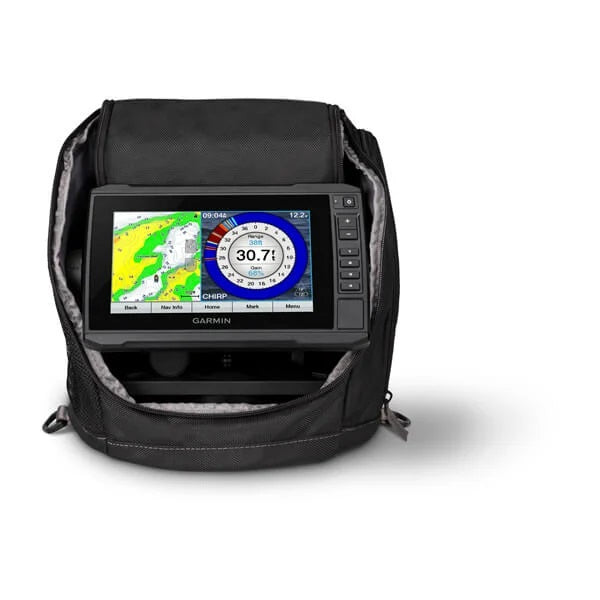

Garmin ECHOMAP™ UHD 73cv Ice Fishing Bundle With GT10HN-IF Transducer
Model: 010-02334-15
The sun won’t steal your screen. The bright 7″ display is sunlight readable.
You need to see what’s beneath the surface. With the included transducer, you can.
With the built-in flasher, you won’t lose sight of the jig or the fish it attracts.
It’s all in the details. And with LakeVü g3 maps, you’ll get them all on 18,000+ lakes.
Everything goes where you go. All accessories fit in the rugged, portable carrying case.
The portable 7″ ECHOMAP UHD 73cv ice fishing bundle is excellent on ice and on your boat for year-round fishing, and it features a touchscreen with keyed assist.
The bundle includes a high narrow CHIRP ice fishing transducer with selectable beamwidth and provides crisp, clear fish arches with excellent target separation.
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.
You can create custom pages that combine sonar, flasher and map on your display.
ECHOMAP UHD 73cv also supports ClearVü scanning sonar for open water. Get nearly photographic images of what’s below the surface (transducer sold separately).
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
Specifications
General
PHYSICAL DIMENSIONS
10.5″” 9.5″” 10.5″” (26.7 22.9 26.7 cm)
DISPLAY SIZE
6.0″”x3.6″”; 7.0″” diagonal
DISPLAY RESOLUTION
800 x 480 pixels
DISPLAY TYPE
WVGA display
WEIGHT
10.7 lb (4.9 kg)
WATER RATING
IPX7
POWER CONSUMPTION
15 W
ANTENNA
Internal or external over NMEA 2000
RECEIVER
5 Hz
GARMIN MARINE NETWORK™ PORTS
1 Panoptix™ port
TRANSMIT POWER
500 W (RMS)
Maps & Memory
PRELOADED MAPS
LakeVü g3 (inland maps)
ACCEPTS DATA CARDS
1 microSD™ card; 32 GB maximum card size
WAYPOINTS
5,000
TRACK LOG
50,000 points; 50 saved tracks
ROUTES
100
Outdoor Recreation
TIDE TABLES
Yes
Chartplotter Features
GARMIN SONAR COMPATIBLE
Yes
Sonar Features & Specifications
FREQUENCIES SUPPORTED
CHIRP High Narrow (130-300 kHz)
CHIRP SONAR TECHNOLOGY
Yes (Built-in)
CLEARVü
Yes (with compatible transducer sold separately)
MAXIMUM DEPTH
800 ft freshwater
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
Yes
SONAR RECORDING
yes
SONAR HISTORY REWIND
Yes
Connections
NMEA 2000® COMPATIBLE
Yes
TRANSDUCER PIN NUMBERS
8-pin
NMEA 0183 INPUT PORTS
1
NMEA 0183 OUTPUT PORTS
1
WIRELESS CONNECTIVITY
Yes
What’s in the Box:
ECHOMAP™ UHD 73cv chartplotter
GT10HN-IF transducer
Power cable
Tilt/swivel mount
Documentation
Bag with handle
Foam float
Rechargeable battery
Battery charger
